Overview

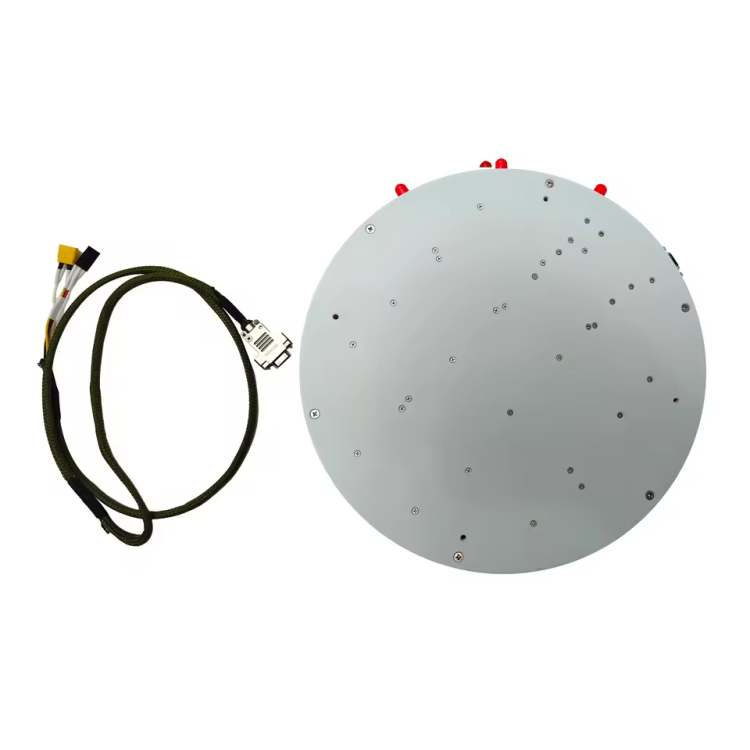

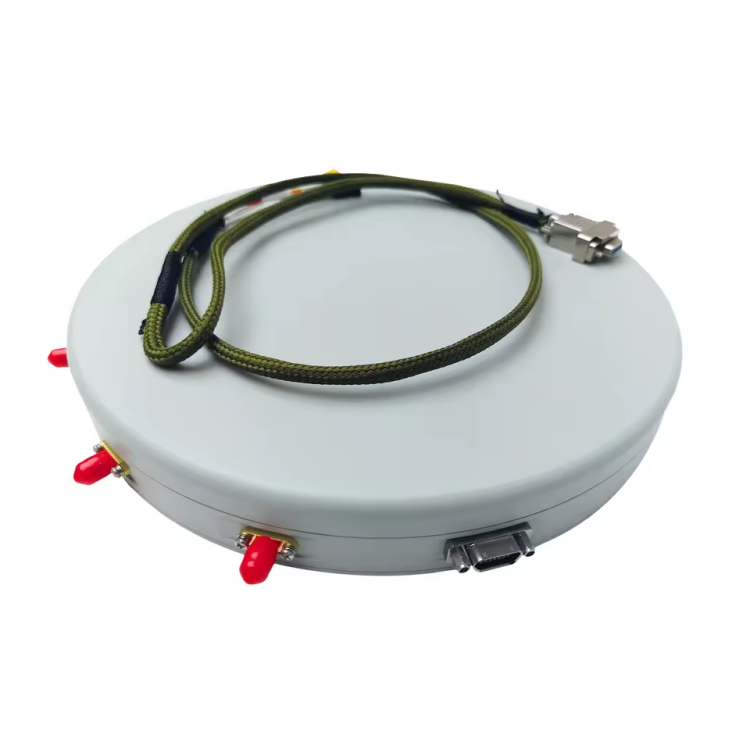

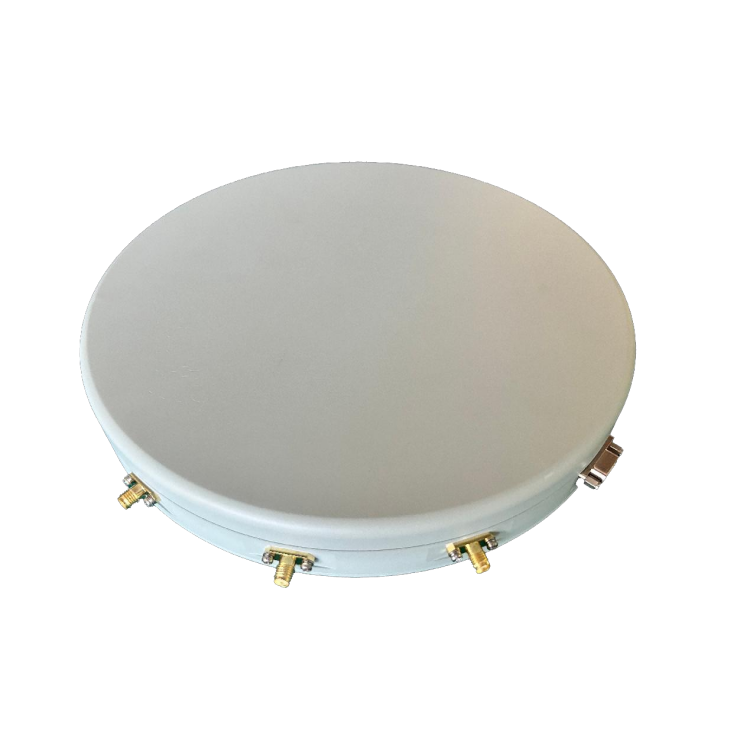

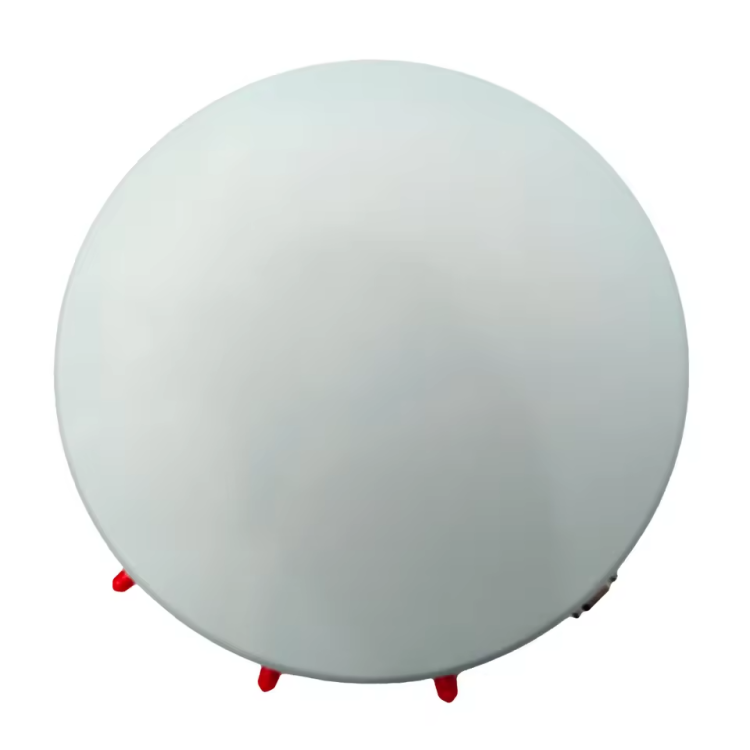

The TOXU TX2504-3T7A21C-WG-DT is a 7-element GNSS Anti-Jamming CRPA Antenna designed for UAVs, unmanned vehicles, and industrial navigation applications requiring enhanced satellite signal reliability.

The integrated CRPA antenna solution combines a multi-element antenna array, anti-jamming components, and satellite navigation receiver functions into one compact structure, reducing system integration complexity.

The antenna supports BDS, GPS, GLONASS, and Galileo navigation signals, and provides anti-jamming capability against narrowband interference, broadband interference, pulse interference, sweep interference, and Gaussian interference.

Key Features

7-Element CRPA Antenna Array

The seven-element antenna array design provides spatial interference suppression capability and supports reliable GNSS signal reception.

Multi-Constellation GNSS Support

Supports BDS-B1i, BDS-B1c, GPS-L1, GLONASS-G1, and Galileo-E1 satellite navigation signals.

High Anti-Jamming Capability

Supports interference suppression with single interference dry signal ratio ≥110dB, three interference ≥100dB, and six interference ≥90dB.

Integrated Navigation Solution

The product integrates antenna array, anti-jamming components, and navigation receiver functions into one all-in-one solution.

Flexible Output Interfaces

Supports NMEA0183 navigation output, TTL serial communication, and SMA RF signal output interface.

Technical Specifications

Dimension Drawing

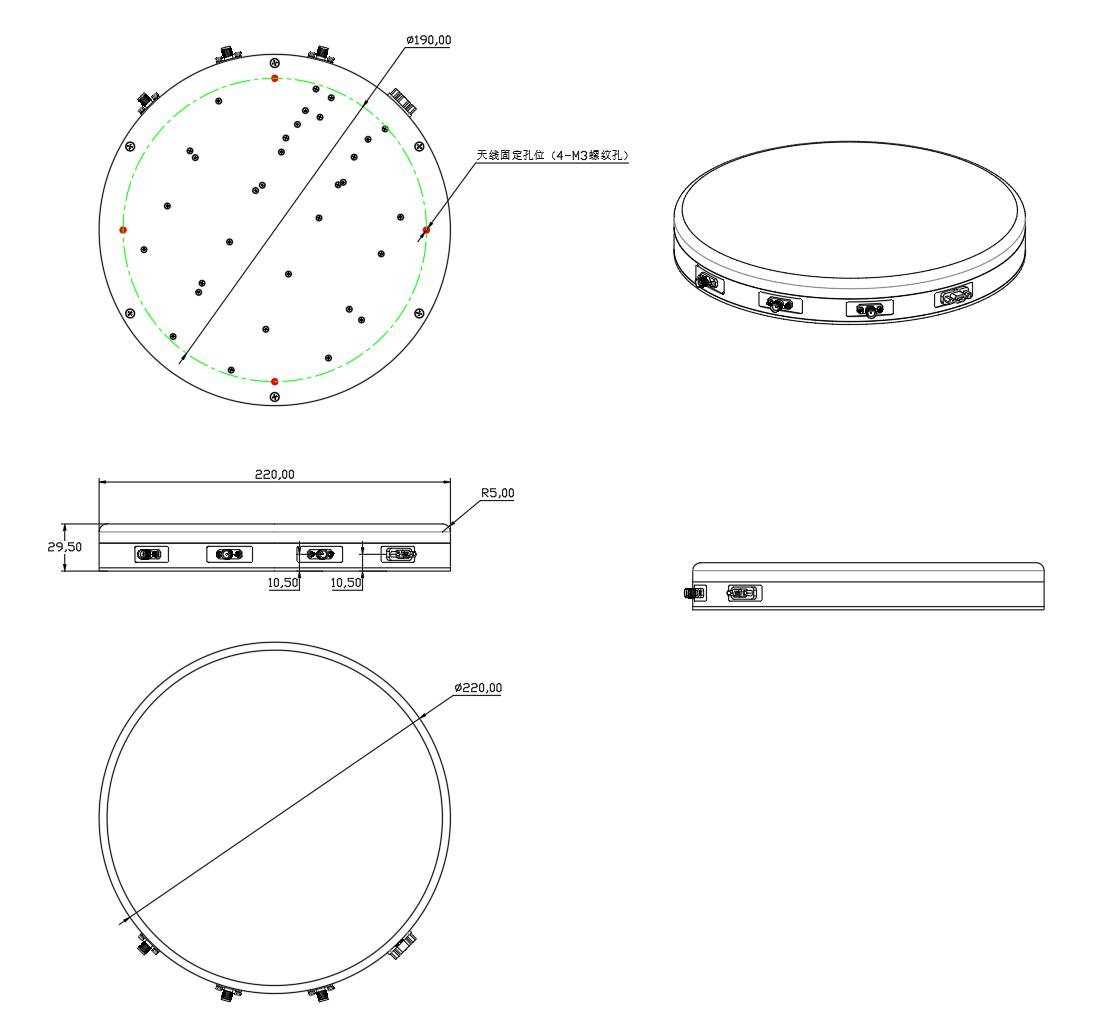

The TX2504-3T7A21C-WG-DT features a circular CRPA antenna structure with dimensions of Φ220mm × 29.5mm.

The mechanical design supports integration into UAV and industrial navigation platforms.

Applications

• UAV Navigation Systems

• Unmanned Vehicles

• Autonomous Navigation Platforms

• Industrial Navigation Systems

• GNSS Signal Reliability Applications

System Integration

The TX2504-3T7A21C-WG-DT can be integrated with flight controllers and navigation platforms through TTL serial communication.

The SMA RF interface provides anti-jamming GNSS signal output for connection with compatible positioning equipment.

The product supports flexible integration methods according to different navigation system requirements.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including GNSS terminals, CRPA antennas, anti-jamming solutions, GNSS antennas, and RF cable assemblies.

With professional RF design capability, antenna development experience, and OEM/ODM customization service, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable manufacturing capability for industrial positioning applications.
