Overview

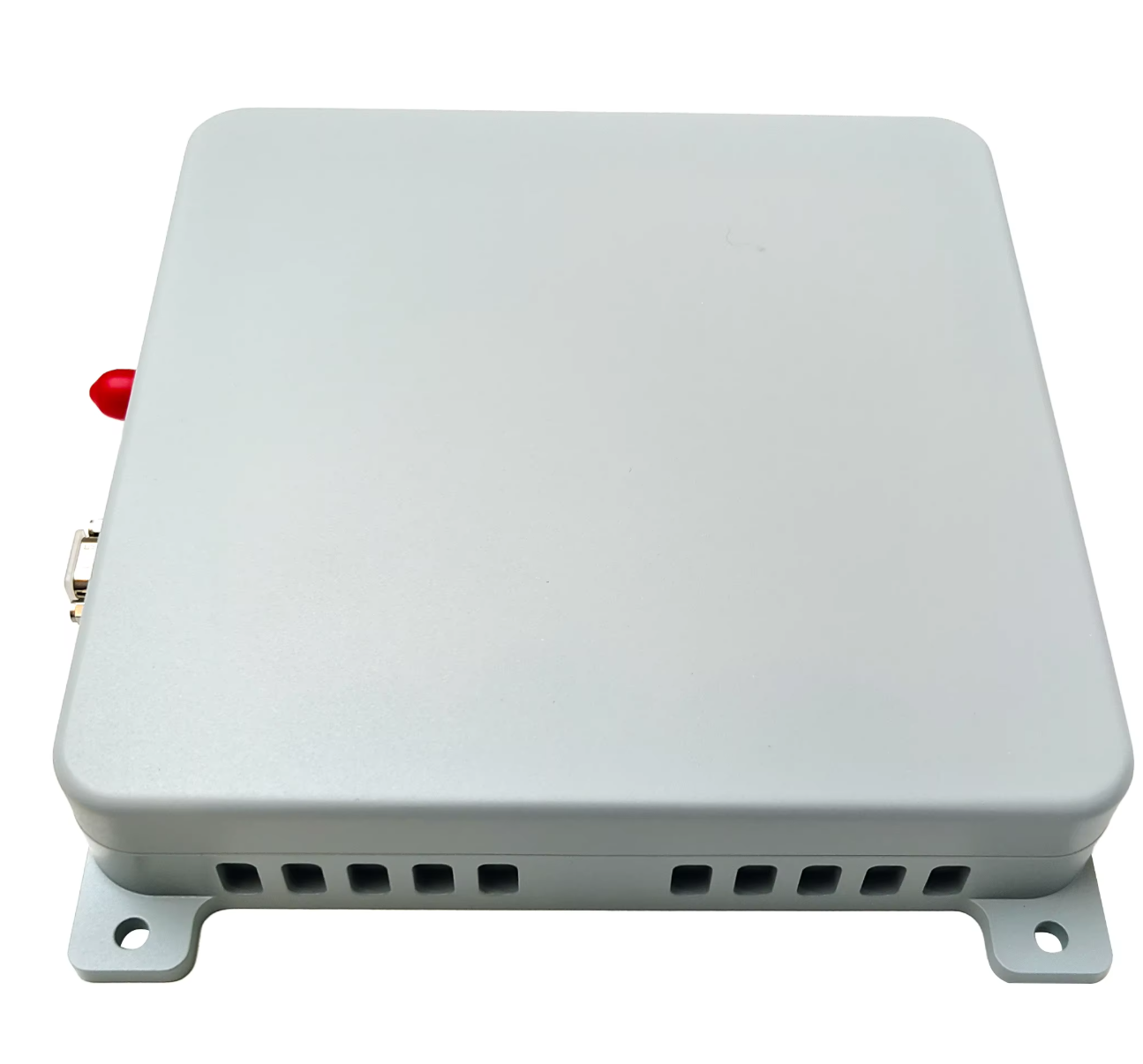

The TOXU TX-MGA100 is a 4-channel GNSS anti-jamming and anti-spoofing terminal designed for vehicle-mounted systems, small UAVs, and autonomous navigation applications.

The integrated terminal combines GNSS signal reception, anti-jamming processing, and receiver functions into one compact structure, helping improve navigation reliability under interference environments.

TX-MGA100 supports B1I, L1, and E1 frequency signals, and provides anti-jamming capability against broadband interference, narrowband interference, multi-tone interference, single-tone interference, sweep interference, and pulse interference.

Key Features

4-Channel GNSS Anti-Jamming Architecture

The 4-channel design supports GNSS interference suppression for B1I, L1, and E1 frequency bands with single interference resistance ≥100dB and three interference resistance ≥90dB.

Anti-Spoofing Capability

The built-in anti-spoofing receiver supports detection and mitigation of generative spoofing and repeater spoofing signals, improving navigation reliability.

Multi-Band GNSS Support

Supports B1I, L1, and E1 satellite navigation signals with receiving bandwidth of 1568±10MHz.

Compact Industrial Structure

The compact 100mm × 100mm × 26mm enclosure and lightweight design allow flexible installation in vehicles and small UAV platforms.

Flexible Communication Interface

Provides TTL communication interfaces and SMA RF output interface for integration with different navigation systems.

Technical Specifications

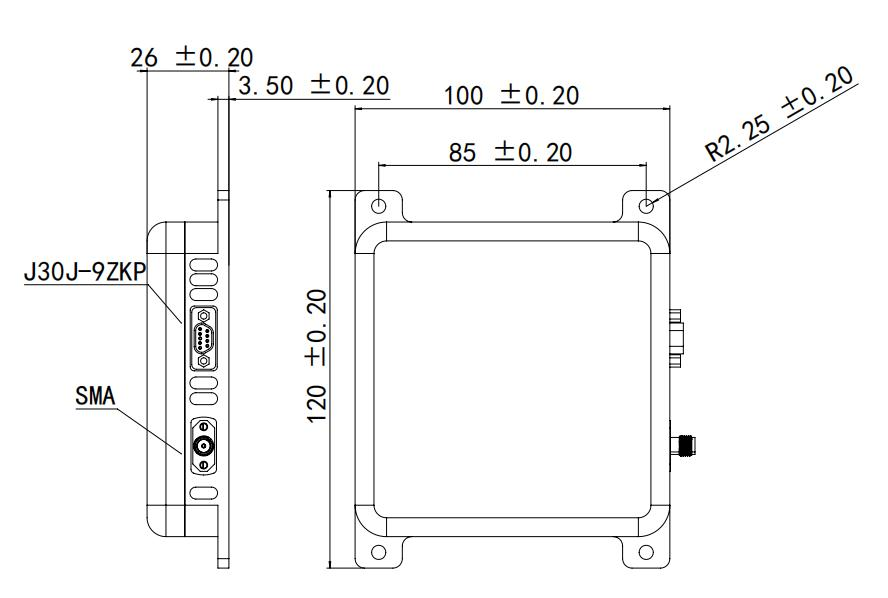

Dimension Drawing

The TX-MGA100 features a compact enclosure with dimensions of 100mm × 100mm × 26mm and a lightweight structure of approximately 300g.

The design supports flexible installation in vehicle-mounted systems and small UAV platforms.

Applications

• Vehicle Navigation Systems

• Small UAV Navigation Systems

• Autonomous Platforms

• Industrial Navigation Equipment

• GNSS Reliability Applications

System Integration

The TX-MGA100 supports integration with navigation platforms through TTL serial communication.

The SMA RF interface provides processed GNSS signal output for connection with compatible positioning equipment.

The integrated design reduces the need for separate antenna, anti-jamming module, and receiver integration.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including GNSS terminals, CRPA antennas, anti-jamming solutions, and RF cable assemblies.

With professional RF engineering capability, antenna development experience, and OEM/ODM customization service, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable GNSS hardware solutions for industrial navigation applications.

FAQ – Frequently Asked Questions

Q1: What is TX-MGA100?

A1: TX-MGA100 is a compact 4-channel GNSS anti-jamming and anti-spoofing terminal designed for vehicles and small UAV navigation systems.

Q2: What GNSS signals are supported?

A2: It supports B1I, L1, and E1 satellite navigation signals.

Q3: Does it support anti-spoofing?

A3: Yes. It supports detection and mitigation of generative spoofing and repeater spoofing signals.

Q4: Can TOXU provide customization?

A4: Yes. TOXU supports OEM/ODM customization including GNSS integration and hardware optimization.
