Overview

The TOXU KC.DA.0093 is a 16-element GNSS Anti-Jamming CRPA Antenna designed for applications requiring reliable satellite navigation performance in complex electromagnetic environments.

The product integrates a 16-element antenna array, anti-jamming module, and GNSS receiver into one highly integrated navigation solution, reducing the complexity of combining separate antennas and positioning equipment.

KC.DA.0093 supports GPS L1, Galileo E1, BDS B1c, and BDS B1i satellite navigation signals. It is suitable for UAVs, unmanned vehicles, unmanned ships, timing security, and industrial navigation applications.

Key Features

16-Element CRPA Antenna Array

The 16-element antenna array provides spatial signal processing capability for suppressing GNSS interference and improving navigation reliability.

Multi-Constellation GNSS Signal Support

Supports GPS L1, Galileo E1, BDS B1c, and BDS B1i frequency bands for different satellite navigation requirements.

Enhanced Anti-Jamming Performance

Supports interference suppression with ISR ≥100dB for single interference, ≥85dB for seven interference sources, and ≥70dB for fifteen interference sources.

Integrated GNSS Receiver

The built-in receiver supports NMEA0183 ASCII protocol and u-blox protocol output, enabling direct connection with navigation systems.

Flexible System Integration

Supports TTL serial communication and SMA RF signal output interface for different integration methods.

Technical Specifications

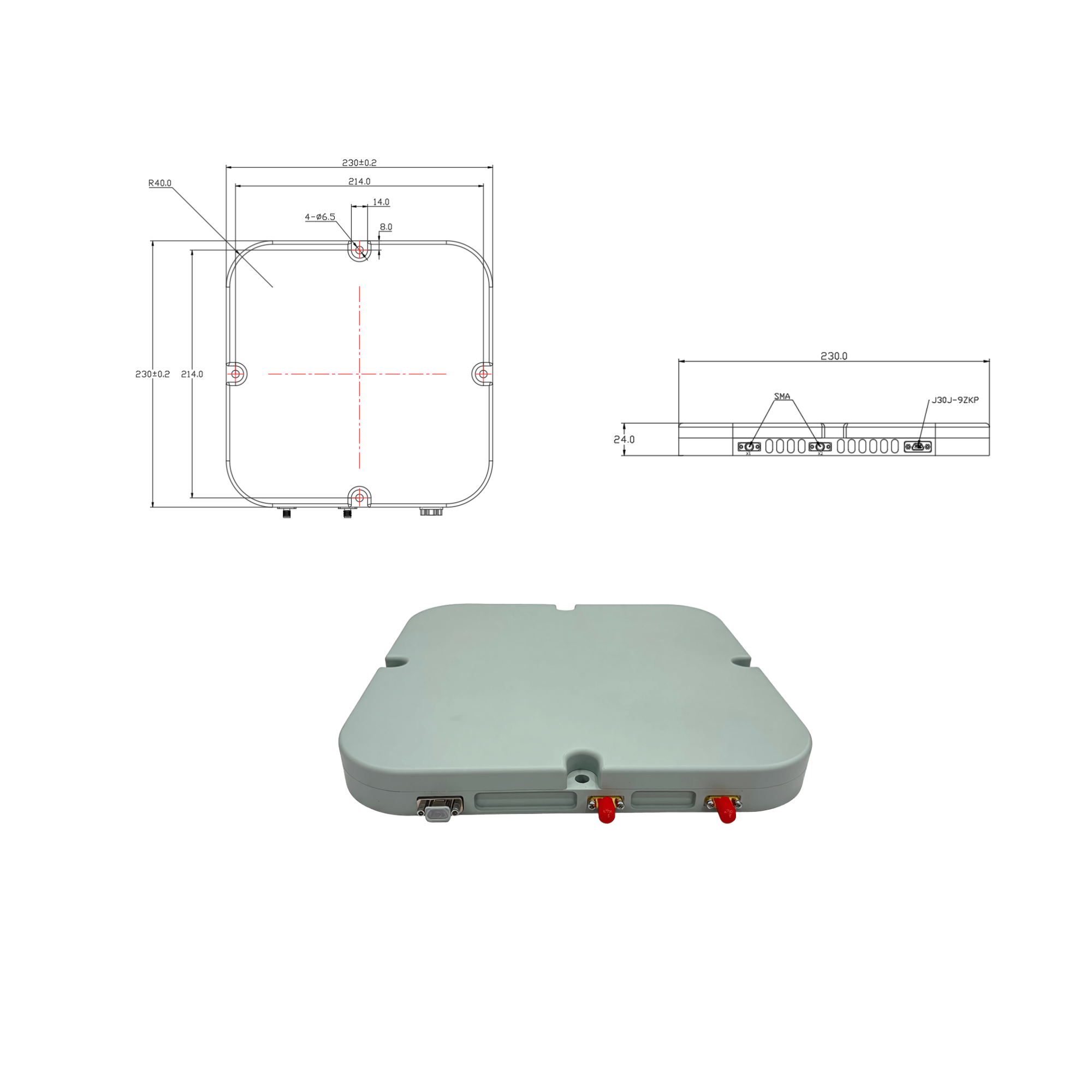

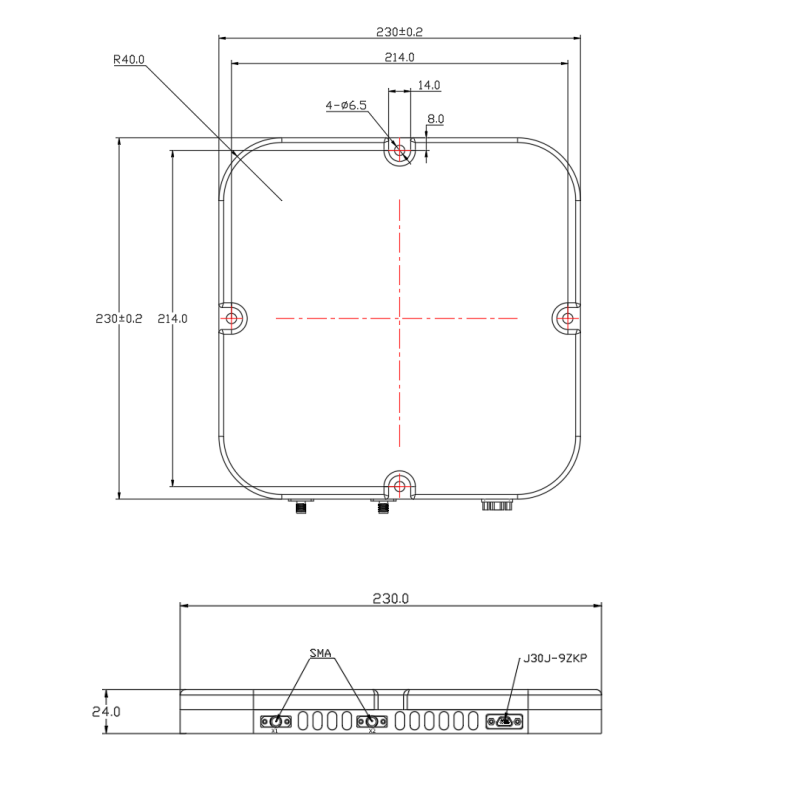

Dimension Drawing

The KC.DA.0093 features a compact CRPA antenna structure with dimensions of 230mm × 230mm × 24mm.

The design supports integration into UAVs, unmanned vehicles, unmanned ships, and industrial navigation platforms.

Applications

• UAV Navigation Systems

• Unmanned Ground Vehicles

• Unmanned Marine Vehicles

• Timing Security Applications

• Industrial Navigation Systems

System Integration

The KC.DA.0093 supports two integration methods.

The TTL serial interface can directly output navigation data to flight controllers or navigation platforms.

The SMA RF interface can output processed GNSS signals to compatible external receivers, replacing conventional active GNSS antennas.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including CRPA antennas, GNSS terminals, anti-jamming solutions, and RF cable assemblies.

With professional antenna design capability, RF engineering experience, and OEM/ODM customization service, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable GNSS hardware solutions for industrial positioning applications.

FAQ – Frequently Asked Questions

Q1: What is KC.DA.0093?

A1: KC.DA.0093 is a 16-element GNSS anti-jamming CRPA antenna with integrated receiver capability.

Q2: Which GNSS signals are supported?

A2: It supports GPS L1, Galileo E1, BDS B1c, and BDS B1i signals.

Q3: How many interference sources can it suppress?

A3: It supports suppression of up to fifteen interference sources according to specification requirements.

Q4: Does it include a GNSS receiver?

A4: Yes. The product has a built-in receiver and supports NMEA0183 ASCII and u-blox protocol output.

Q5: Can TOXU provide customization?

A5: Yes. TOXU supports OEM/ODM customization including antenna optimization, hardware integration, and customized GNSS solutions.
