Overview

The TOXU KC.DA.0092 is a 16-channel GNSS anti-jamming integrated terminal designed for applications requiring enhanced satellite navigation reliability in complex electromagnetic environments.

The product integrates a 16-channel antenna array, RF module, anti-jamming processing module, and GNSS receiver into one all-in-one solution, providing complete GNSS signal reception, processing, and interference suppression capability.

KC.DA.0092 supports BDS B1, GPS L1, and Galileo E1 frequency signals. It is suitable for mobile vehicles, ships, aircraft, unmanned platforms, and other navigation systems requiring reliable PNT information.

Key Features

16-Channel Adaptive Anti-Jamming Architecture

The 16-channel antenna array supports adaptive filtering technology and provides interference suppression capability against wideband, narrowband, pulse, and sweep interference.

Multi-Constellation GNSS Signal Support

Supports BDS B1, GPS L1, and Galileo E1 satellite navigation signals for different navigation system requirements.

Integrated All-in-One Navigation Design

The terminal integrates antenna array, RF module, anti-jamming module, and GNSS receiver, reducing system integration complexity.

Multi-Source Interference Suppression

Supports resistance against up to 15 interference sources with single interference dry signal ratio ≥110dB and 15 interference dry signal ratio ≥90dB.

Flexible Output Interfaces

Provides RF output through TNC-K connector and navigation data communication through TTL and RS422 interfaces.

Technical Specifications

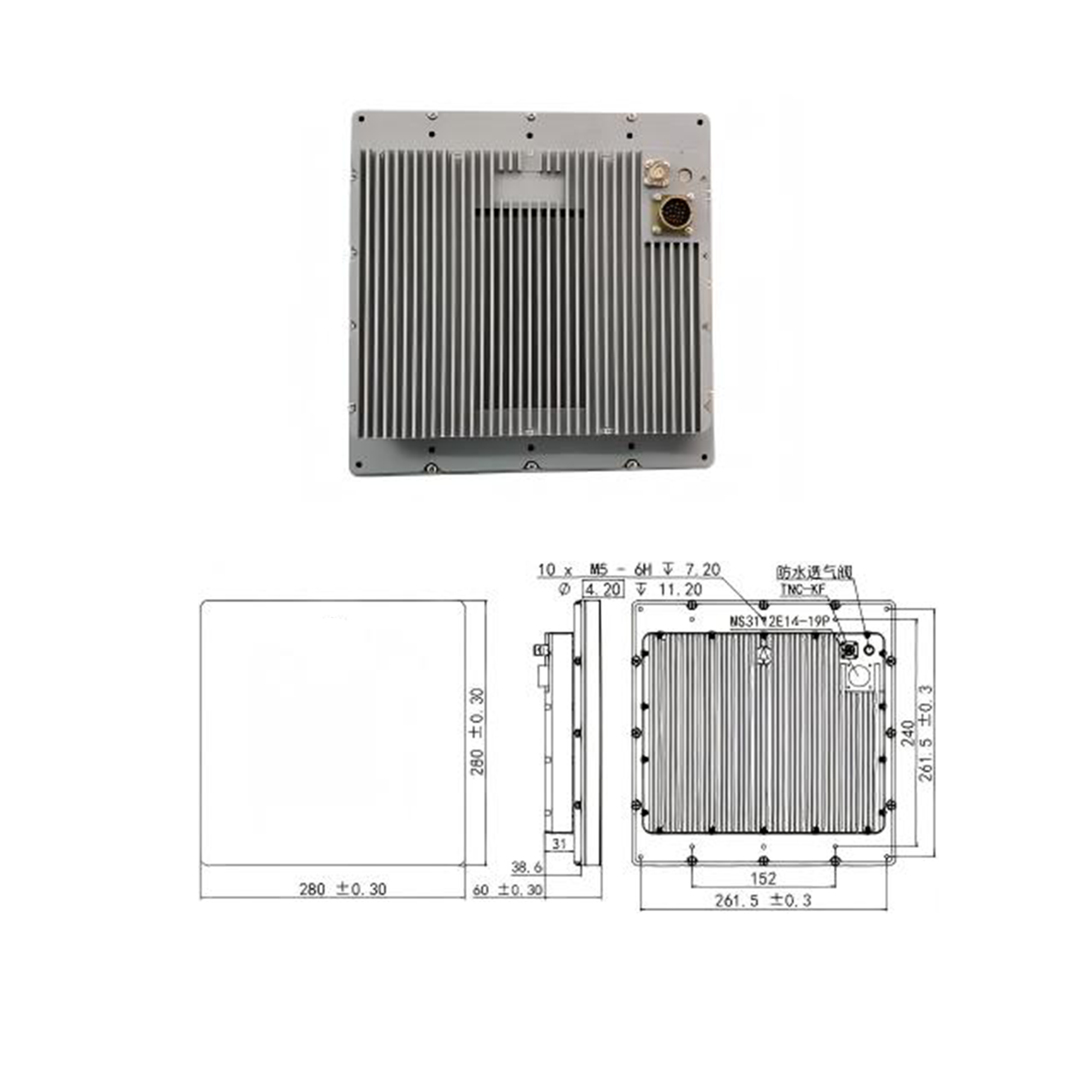

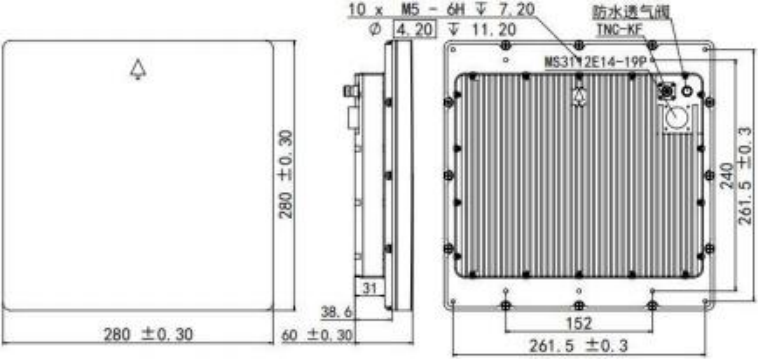

Dimension Drawing

The KC.DA.0092 features a compact industrial enclosure with dimensions of 280mm × 280mm × 60mm.

The structure is designed for integration into vehicles, ships, aircraft, and unmanned platforms.

Applications

• UAV Navigation Systems

• Unmanned Platforms

• Autonomous Vehicles

• Marine Navigation Systems

• Aircraft Navigation Systems

• Industrial PNT Security Applications

System Integration

The KC.DA.0092 can connect with external navigation platforms through TTL navigation data interface and RS422 anti-jamming data interface.

The TNC-K RF output interface allows connection with external receivers for satellite signal reception and testing.

The integrated design provides a complete GNSS anti-jamming solution without requiring separate antenna array, RF module, and receiver integration.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including GNSS terminals, CRPA antennas, anti-jamming solutions, and RF cable assemblies.

With professional RF engineering capability, antenna development experience, and OEM/ODM customization service, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable navigation hardware solutions for industrial applications.

FAQ – Frequently Asked Questions

Q1: What is KC.DA.0092?

A1: KC.DA.0092 is a 16-channel GNSS anti-jamming integrated terminal combining antenna array, RF module, anti-jamming processing, and GNSS receiver functions.

Q2: Which GNSS signals are supported?

A2: It supports BDS B1, GPS L1, and Galileo E1 satellite navigation signals.

Q3: How many interference sources can it suppress?

A3: The terminal supports resistance against up to 15 interference sources.

Q4: What interfaces are available?

A4: It provides TNC-K RF output interface and TTL/RS422 communication interfaces.
